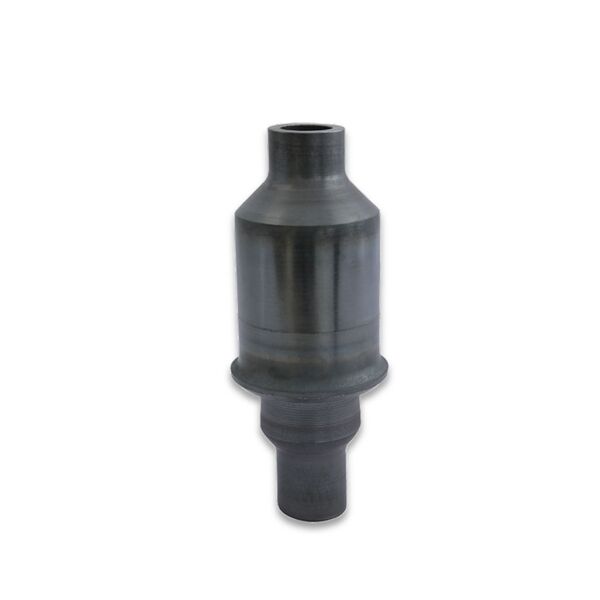

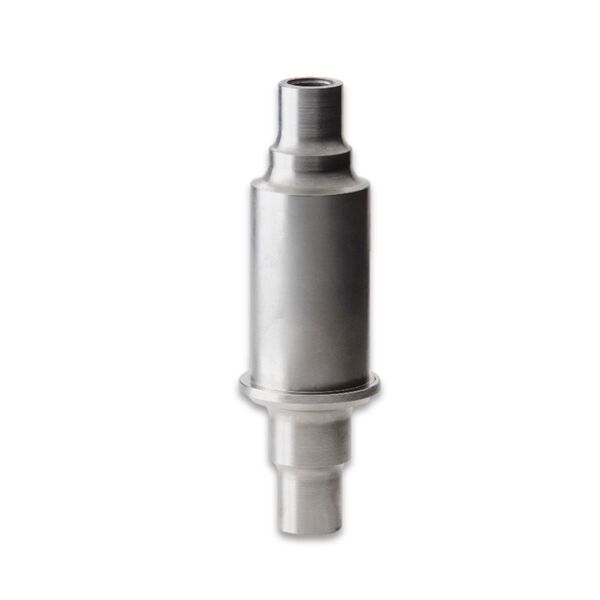

The vertical LEIFELD Rotor Shaft Forming Center LEIFELD RFC 400/4 C+H is specially designed for the chipless forming of rotor shafts with different forming operations in a single setup. This machine is equipped with 2 radial axes and 2 axial axes with the optional tool shifting device on both sides, which enables the flow forming, necking-in, and flange forming process. The preforms are clamped either by the clamping chuck which is installed on the main spindle or by the tailstock with a connected upper tool by axial clamping.
Various preforms, such as thickwalled and thinwalled tubes, forged preforms and blanks can be processed.
Main Characteristics
Low space requirements and good accessibility thanks to compact and ergonomic design
High flexible forming and combination of processes
Patented forming technologies
Different shapes, diameters, wall thicknesses and materials
