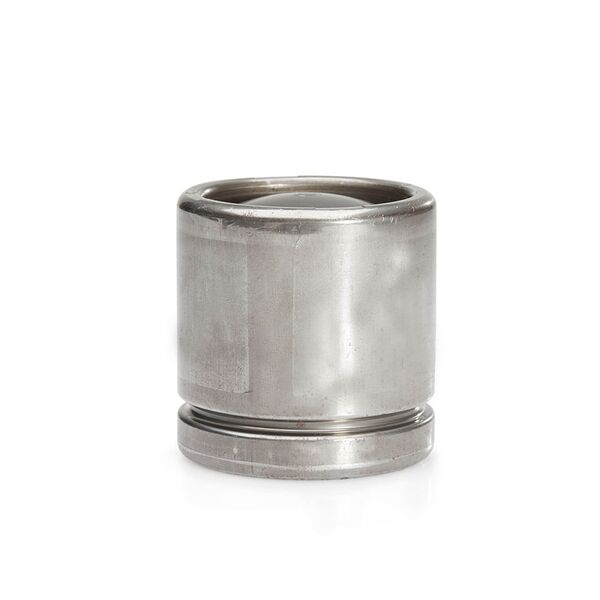

This machine is designed to form precise brake pistons for safe and powerful brake systems. The machine is prepared for the integration in a fully automated, 3-shift-production process without machine operators. The integration will be in accordance with a fully dimensioned layout designed by the customer.
Main Characteristics
Horizontal, CNC-controlled groove profiling system with minimal space requirements
Extremly low material input and optimum material utilisation
Sophisticated sensor systems and highly modern and precise measuring technology
Flexible forming with two axially adjustable spindle bearings
Overhead robot feed-in for fast charging and discharging
Technical Data
LEIFELD KSA 375
Piston diameter, min.
38 mm
Piston diameter, max.
60 mm
Piston length, min.
45 mm
Piston length, max.
60 mm
The edge thickness of the piston is process and part-related, max.
