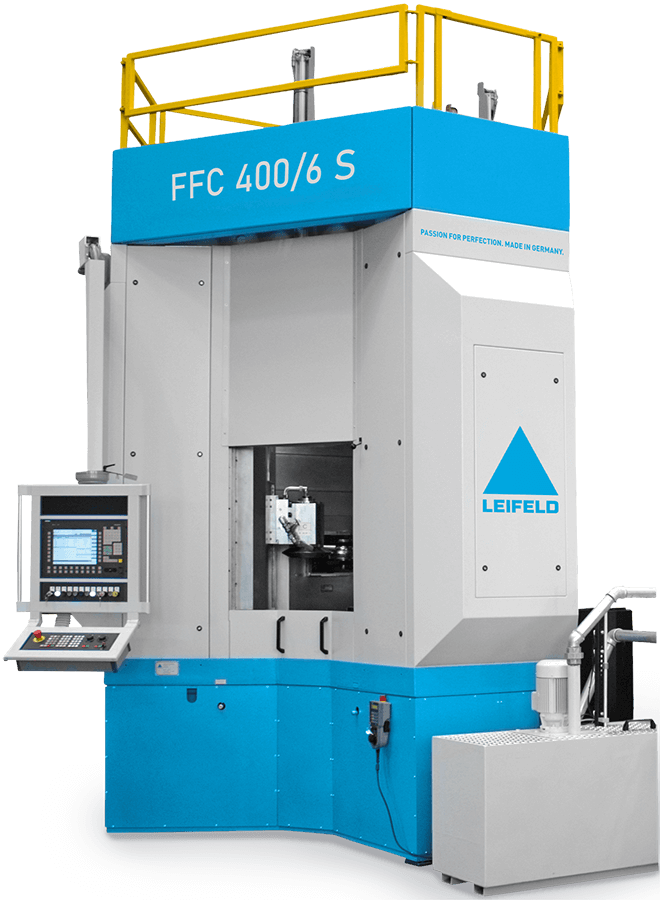

Leifeld FFC 400/6 S
Why wait when you can get it faster?
With Fast Forward, we fast-forward the manufacturing time for you!
In just 10 weeks, you can see, test, and receive the LEIFELD FFC 400/6 S in the version shown. Maximum efficiency – without compromising on quality and performance.
Call us now and
go Fast Forward with us:
Advantages of FFC 400/6 S
In just 10 weeks you will be able to see, test and order the LEIFELD FFC 400/6 S in the design shown.
Secure your competitive advantage now!
Product changeover
time about 1 hour
(machine & process)
3-roll
and 6-axis system
with 120° arrangement
Active
two-sided
tool drive

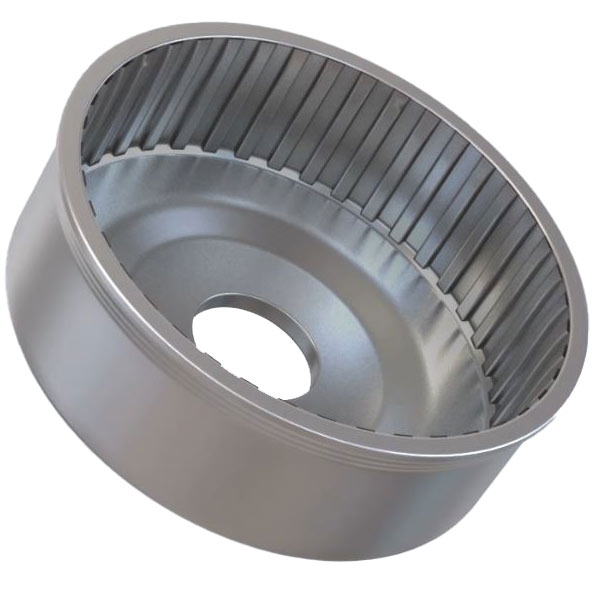

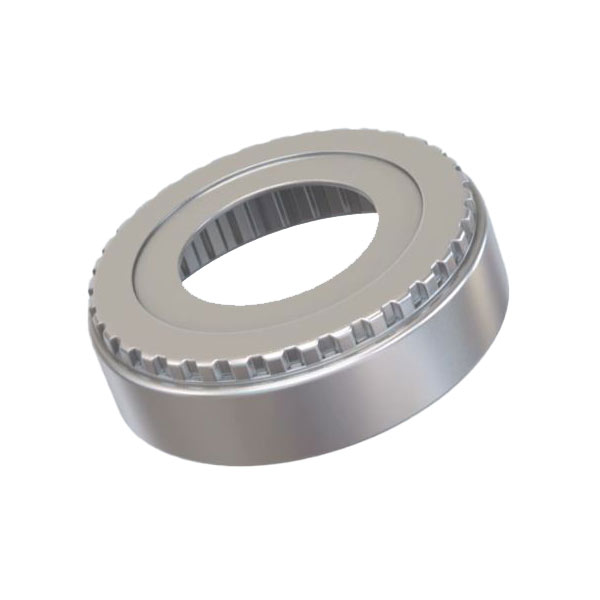

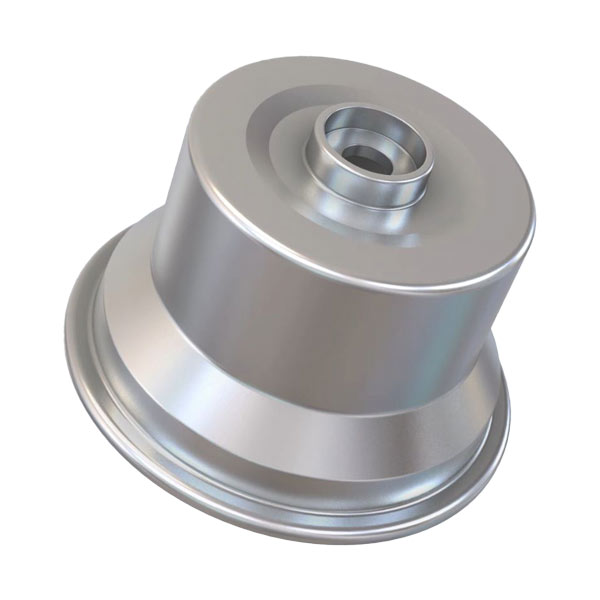

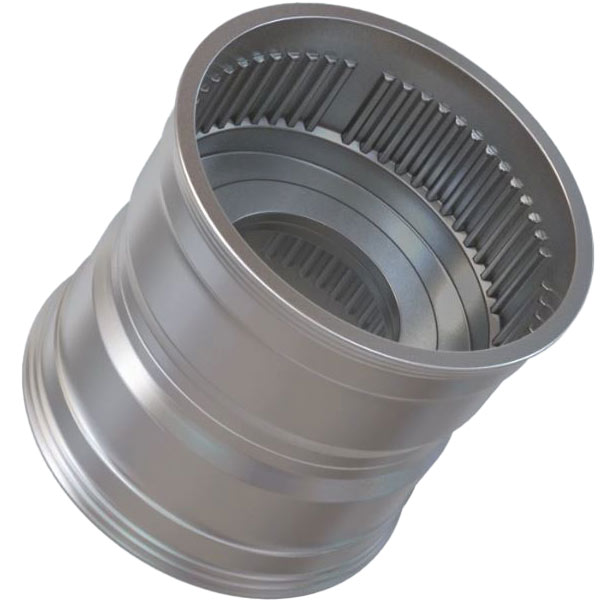

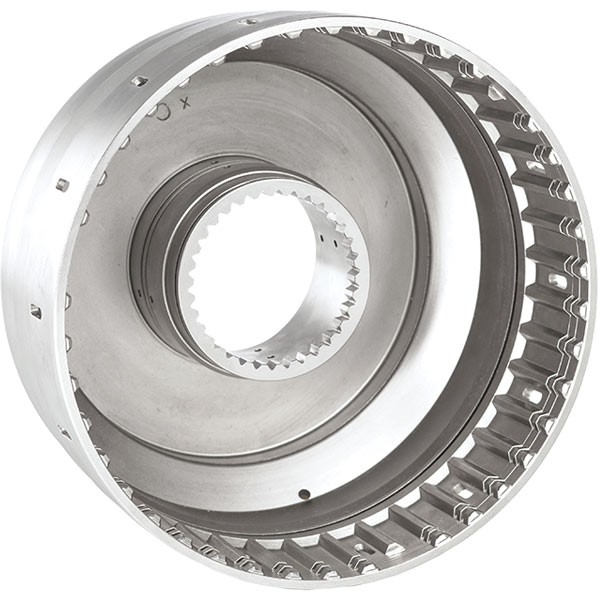

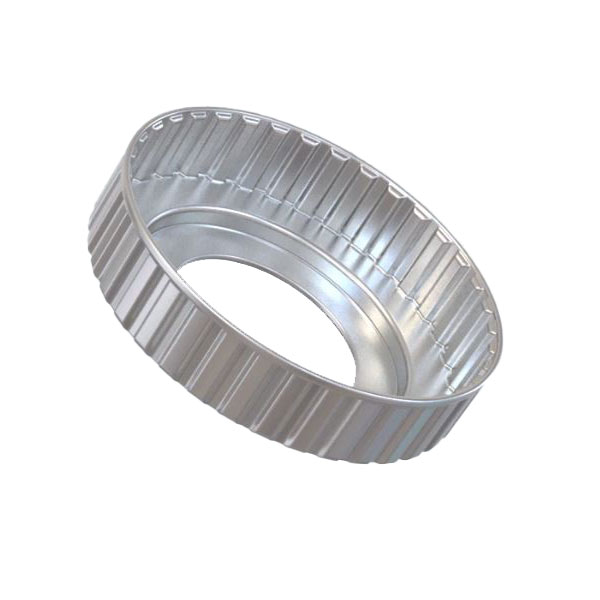

All types/sizes
of vehicle disc
carriers
Technical data:
| External diameter | 60-400 mm |
| Workpiece length (clutch) | max. 360 mm |
Radial axes
| Max. axial force | 3 x 160 kN |
| Radial force max. | 3 x 300 kN |
Main spindle
| Tool holder | 11 |
| Speed controlled spindle drive | 100 kW |
| Spindle speed | 100-600 min-1 |
Tailstock
| Speed-regulated spindle drive | 100 kW |
| Distance max. | 550 mm |
| Contact pressure | 60-450 kN |
Operating conditions
| Nominal connection value | 410 kVA |
| Operating voltage | 3AC 400 V |
| Controlling | Siemens |
LEIFELD FFC 400/6 S
Layout:
Leifeld FFC 400/6 S
Special features:
- Main spindle and tailstock spindle drive
- 3 independent precision flow-forming slides
- Pressure head with tailstock spindle bearing
- Roller bearings with hydraulic drive
- Hydraulic main spindle ejector
- Stripper unit on the main spindle
- Hydraulic tailstock spindle ejector
- Coolant system with band filter and coolant pump
- Tool change device
- Remote diagnostics
- Mobile hand control
- Spindle positioning for main spindle
- Positioning axis for the tailstock
- Preparation for 4th axis precision flow-forming unit

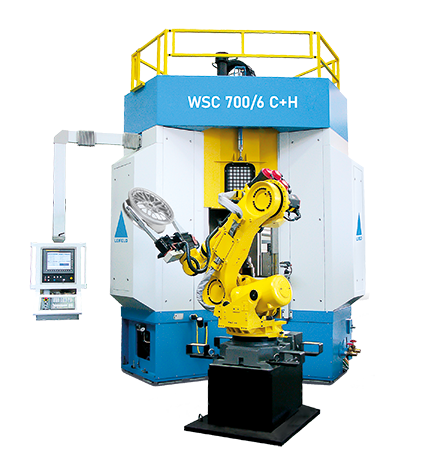

Leifeld WSC 700/6 C+H
Why wait when you can get it faster?
With Fast Forward, we fast-forward the manufacturing time for you!
In just 20 weeks, you can see, test, and receive the LEIFELD WSC 700/6 C+H in the version shown.Maximum efficiency – without compromising on quality and performance.
Call us now and go
Fast Forward with us:
Advantages of the Leifeld WSC 700/6 C+H (demonstration machine)
In just 20 weeks, you can see, test, and receive the LEIFELD WSC 700/6 C+H in the version shown.
Save time and secure your innovative advantage now!
Expansion of portfolio:
cold and warm moulding
Hydraulic main
spindle ejector
Power driven
tailstock
Flexible
powerhouse
Technical data:
| External diameter max. | 720 mm |

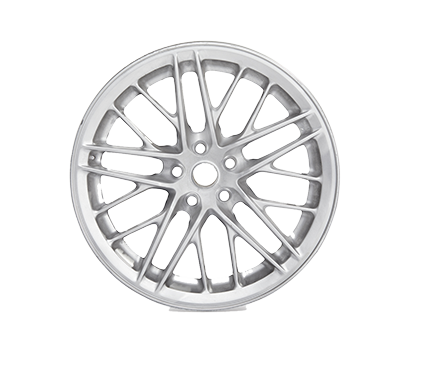

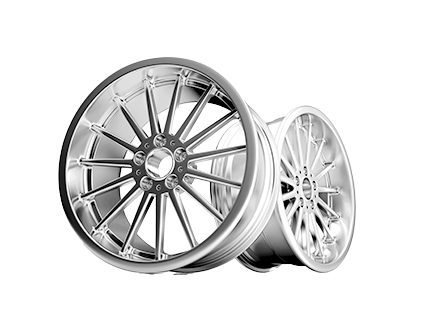

| Rim diameter max. | 26“ |
| Rim width max. | 17“ |
| Workpiece length max. | 480 mm |
Axes
| Downward axial force max. | 3 x 250 kN |
| Axial force upwards max. | 3 x 190 kN |
| Max. radial force | 3 x 250 kN |
Main spindle
| Tool holder | 15 |
| Speed controlled spindle drive | 100 kW |
| Spindle speed | 120-800 min-1 |
Tailstock
| Speed-regulated spindle drive | 100 kW |
| Distance max. | 550 mm |
| Contact pressure | 60-400 kN |
Operating conditions
| Nominal connection value | 410 kVA |
| Operating voltage | 3AC 400 V |
| Control (new) | Siemens One |
Leifeld WSC 700/6 C+H
Layout:
Leifeld FFC 400/6 S
Special features:
- Cold and warm forming
- Main spindle and tailstock spindle drive
- 3 independent precision flow-forming supports with flow-forming units
- Hydraulic main spindle ejector for operating shifting and spreading tools
- Pressure head with tailstock spindle bearing
- Roller bearings with hydraulic drive
- Change of the working range ø min. 16“, max. 24“
- Radiation thermometer
- Fume extraction system - electrostatic
- Coolant system with slotted screen
- Tool changing device
- Roller changing device
- Remote diagnosis
- Spindle positioning for main drives
- Additional coolant nozzle for flushing and lubricating the tools
- Additional fourth precision flow-forming support
- Straight fork roller holder for additional machining unit
- Servo axis for tailstock
Leifeld AFC 200
Why wait when you can get it faster?
With Fast Forward, we fast-forward the manufacturing time for you!
In just 30 weeks, you can see, test, and receive the LEIFELD AFC 200 in the version shown. Maximum efficiency – without compromising on quality and performance.
Call us now and
go Fast Forward with us:
Advantages of AFC 200
In just 30 weeks you will be able to see, test and order the LEIFELD AFC 200 in the design shown.
Secure your competitive advantage now!
High cost-effectiveness
short cycle times and
high-precision forming
Flexible configuration
for a wide range of
diff. workpiece sizes
Cold version:
Integrated loading and
unloading system
Extremely robust and
torsion-resistant
machine design
Technical data:
| Maximum outer diameter | 204 mm |
| Option: | 220 mm |

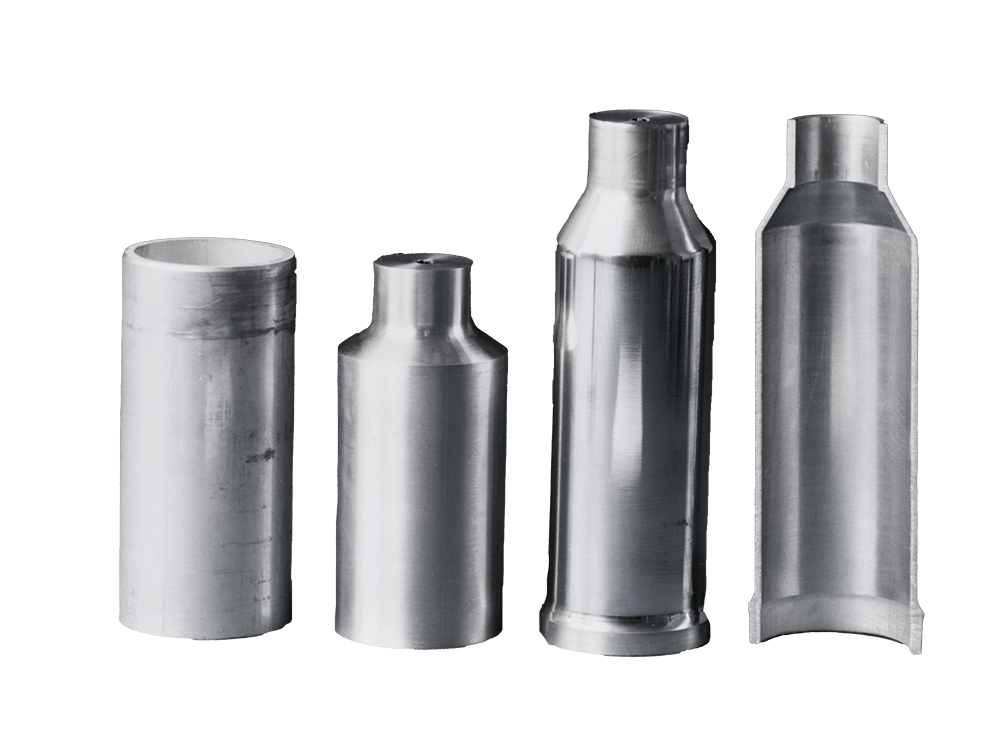

| Initial length of preform max. | 1.500 mm |
| Finished length of workpiece max. | 1.200 mm |
Undersupport
| Max. length | 600 mm |
| Longitudinal force, max. | 50 kN |
| Maximum speed | 6,5 m/min |
Uppersupport
| Max. length | 350 mm |
| Longitudinal force, max. | 50 kN |
| Maximum speed | 8 m/min |
Main spindle
| Drive approx. | 50 kW |
| Speed, adjustable max. | 900 min -1 |
Operating conditions
| Nominal connection value | 120 kVA |
| Operating voltage | 3AC 400 V |
| Control | Teach-In / CNC Leifeld |

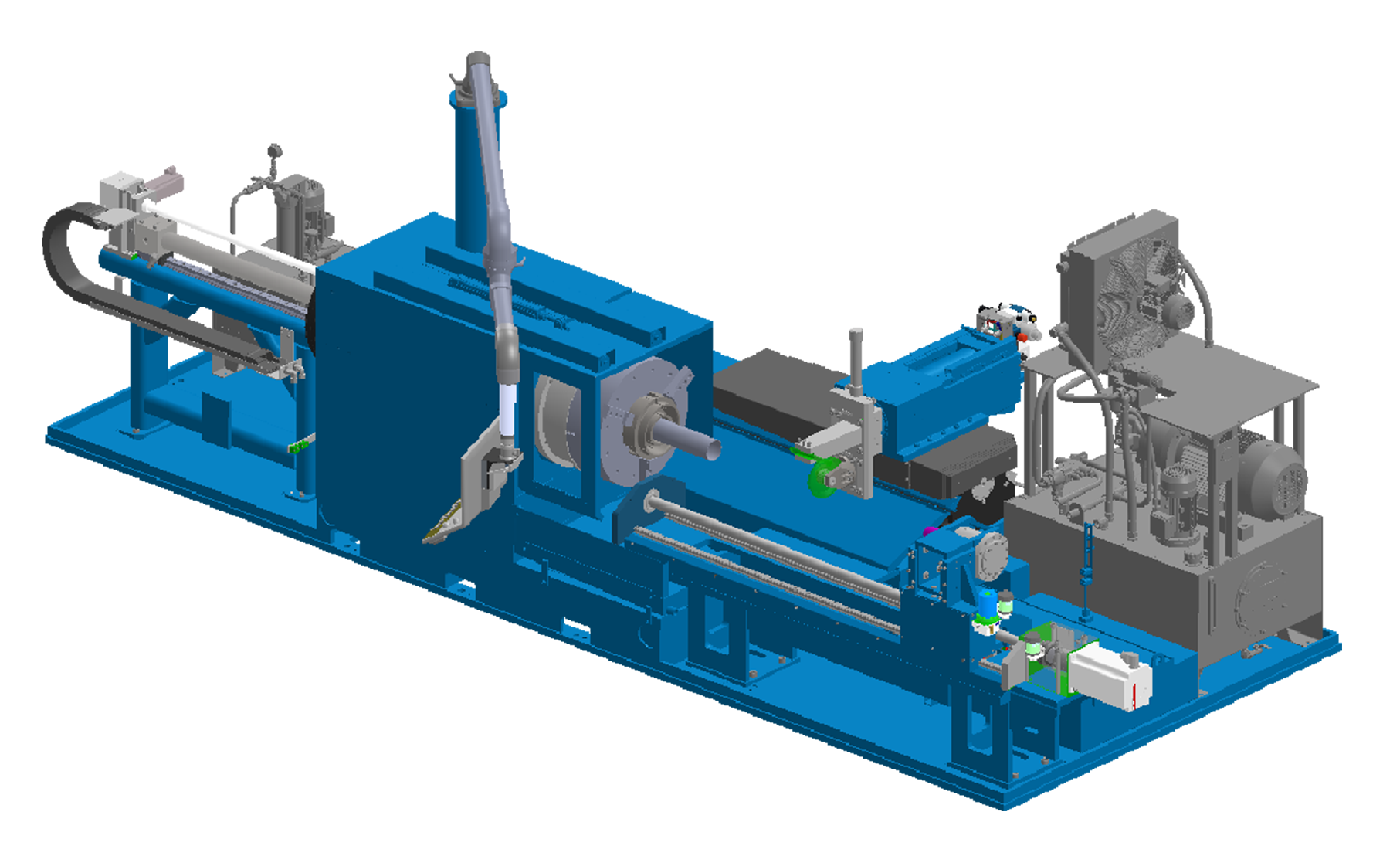

LEIFELD AFC 200 cold/warm
Layout:
LEIFELD AFC 200 cold/warm
Special features::
Cold
- Hollow spindle
- programable end-stop and ejector
- Clamping chuck with one set clamping jaws
- SC Control with Tech-In and CNC mode, can be programmed separate and in combination
- 2-station tool holder for spinning roller and turning tool holder
- cooling water emulsion circulation
- programable tailstock
- One hook design – everything on one plate
- Hydraulic station with air cooler
Warm
- Hollow spindle
- programable end-stop and ejector
- Clamping chuck with one set clamping jaws
- SC Control with Tech-In and CNC mode, can be programmed separate and in combination
- 2-station tool holder for spinning rollers
- mild heat protection
- gas station and torch holder
- One hook design – everything on one plate
- Hydraulic station with air cooler
