Spinning Center

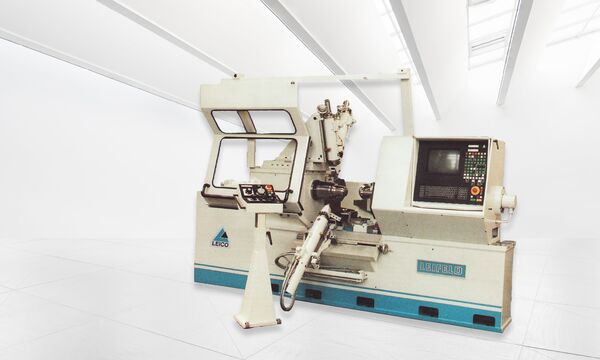

Leifeld PNC 75
- Available in Germany
The machine LEIFELD PNC 75 has been in successful use for decades. The PNC series has specially been developed for spinning and shear forming of rotationally symmetrical parts.
Lamp parts, musical instruments, kitchen ware and hauseware as well as industrial products economically and precisely produced are only some examples for the variety of uses of the LEIFELD PNC 75.
Main Characteristics
Highest precision and large flexibility in part dimensions and wall thickness
Large variety of materials to be processed
Developed machine control by LEIFELD optimized for all applications of spinning processes enables customer-specific programming
High level of automation allows the time reduction of set up and product change over
Technical Data
| LEIFELD PNC 75 | |
|---|---|
| Blank diameter, max. | 750 mm |
| Distance between centres | 350 mm |
| Effectivel longitudinal slide stroke | 405 mm |
| Effective transverse slide stroke | 255 mm |
| Longitudinal thrust | 28 kN |
| Transverse thrust | 28 kN |
| Spindle speeds, max. | 300-3000 UpM |
| Main spindle drive | 14,6/4,7 kW |
| Drive rating for hydraulics | 7,5 kW |
